Confined Space Drone Inspection
Overview
In the realm of infrastructure maintenance and safety, the innovative application of drone technology has brought transformative changes. This case study delves into Team UAV's pioneering approach in utilising a confined space drone to inspect two wet wells within pumping stations operated by Northumbrian Water Group and Essex Water. These facilities, crucial in the management of fresh water, often pose significant risks and financial burdens when traditional inspection methods are employed. Team UAV's intervention not only enhanced safety and efficiency but also resulted in substantial cost savings.
The Challenges
Pumping stations, especially aging facilities, or facilities with complex challenging access arrangements present unique challenges for inspection. Traditionally, these inspections required manned entry into confined spaces, posing significant risks to life and requiring extensive safety protocols. Additionally, the process can involve erecting scaffolding within these confined spaces, incurring high costs and extended downtimes, which will inevitably disrupt water supply and services for extended periods of time.
The Solution

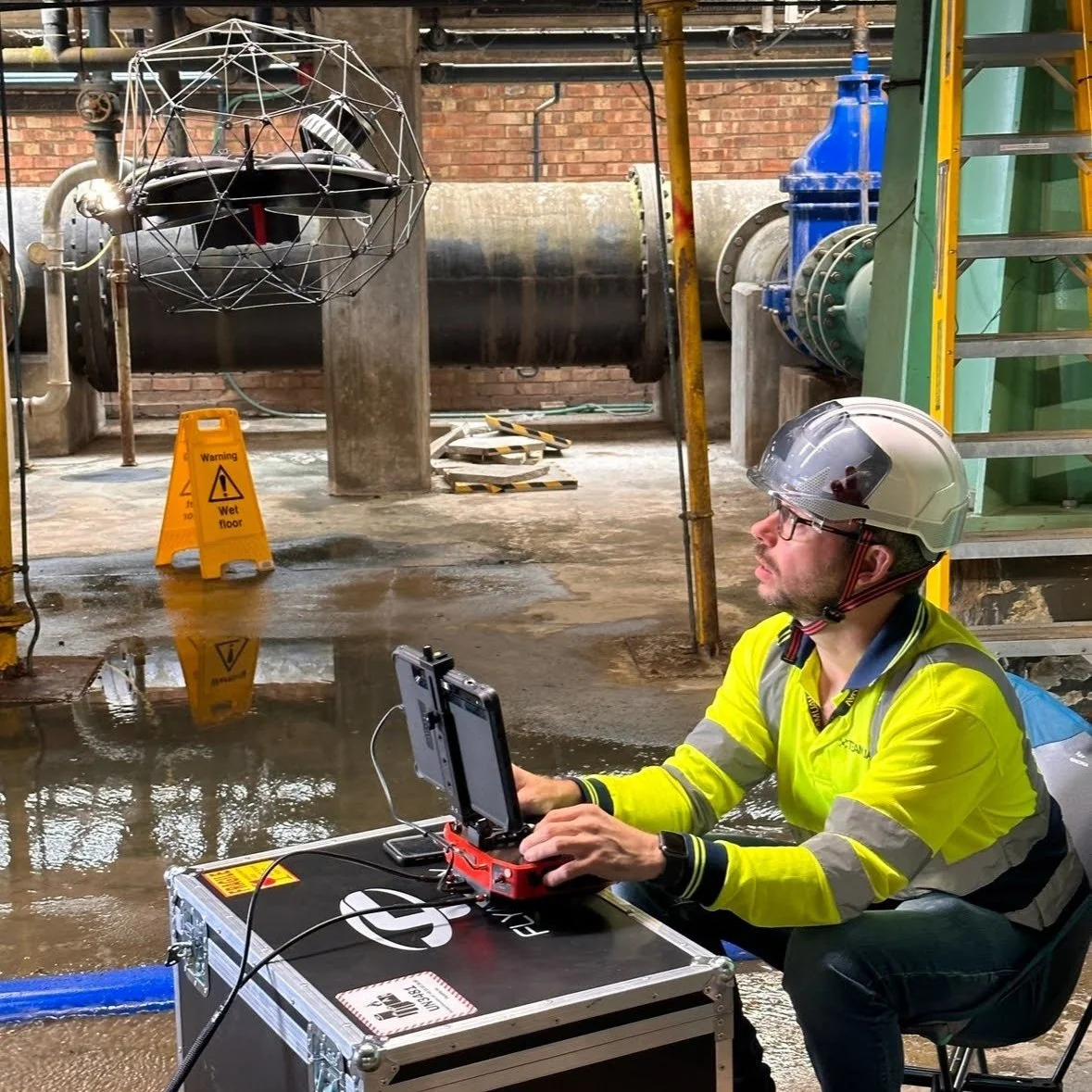

Team UAV deployed a state-of-the-art confined space drone equipped with a ultra high definition 4k camera, LED lighting, a thermal camera and a precision LIDAR sensor to conduct the inspections.
The drone was able to navigate the challenging environments of the wet wells safely and efficiently with the expert direction of Team UAVs Pilot. The LIDAR technology enabled detailed mapping and structural analysis of the wet wells without the need for physical scaffolding or manned entry.
This approach not only eliminated the risks associated with confined space entry but also provided high-resolution data for precise assessment. The 4k camera and LED lighting allowed for an in-depth inspection of the assets and structural components of the facility, whilst the thermal camera allowed identification of leaks within the wet well by identifying the cooler water and damp areas.
Key Benefits
Safety: The use of drones removed the need for personnel to enter potentially hazardous environments.
Cost-Effectiveness: Savings of tens of thousands of pounds were realised by eliminating the need for scaffolding.
Speed: The drone inspections were completed swiftly, allowing for a quicker return to operation of the pumping facilities.
Comprehensive Data: LIDAR sensors provided detailed 3D models of the wet wells, offering insights that would be difficult to obtain through traditional methods.
Minimal Disruption: The operational downtime of the pump stations was significantly reduced, ensuring uninterrupted water services.
Real-Time Monitoring and Problem Identification
During the inspection of the wet wells Team UAV's advanced drone technology enabled engineers to monitor the operation in real-time. This capability was pivotal for several reasons:
1. Immediate Visual Access: Engineers had direct access to the live feed from the drone's camera and LIDAR system. This provided them with an immediate and detailed view of the interior of the confined spaces, something that was not possible with traditional inspection methods.
2. Instant Problem Identification: As the drone navigated the wet wells, any structural issues, anomalies, or potential hazards were immediately visible to the engineers. This real-time observation
allowed for instant recognition of new problems, a critical factor in environments where conditions can change rapidly or where previous inspections might have missed details.
3. Dynamic Inspection Strategy: The ability to identify issues on the fly significantly influenced the course of the inspection. Engineers could adjust the drone's path and focus areas based on the live feed, ensuring a more thorough and targeted inspection. This dynamic approach meant that no area was overlooked, and all potential problems were scrutinised.
Post-Inspection Data Analysis and Application
Once the inspection was completed, the data collected by the drone became a valuable asset for further analysis:
1. Immediate Data Availability: The data captured, including video and LIDAR point clouds, was promptly made available for interrogation on Team UAV's sophisticated software platform. This immediacy in data availability is crucial for timely decision-making and planning of any necessary remedial actions.
2. Versatile Data Usage: The software provided versatility in how the data could be utilised:
- Video Measurements: Engineers could take measurements directly from the video footage, allowing for a detailed analysis of the conditions within the wet wells.
- Point Cloud Analysis: The LIDAR data, represented as a point cloud, offered an accurate,
three-dimensional representation of the wells. Engineers could extract precise measurements and conduct in-depth structural analysis from this data, enabling a level of detail and accuracy that was previously unattainable.
3. Long-Term Planning and Maintenance: The comprehensive data acquired not only served immediate repair and maintenance needs but also contributed to long-term infrastructure management. The high-resolution data provided insights for future planning, risk assessment, and maintenance scheduling, ensuring the continued safety and efficiency of the pumping stations.
The Result
The deployment of Team UAVs confined space drone at the Northumbrian Water Group and Essex Water pumping station marked a significant advancement in the field of industrial confined space inspections. Team UAV successfully conducted comprehensive inspections and LIDAR scans of both wet wells without risking human life, simultaneously achieving considerable cost savings and reducing operational downtime.
This innovative approach not only helps set new standards in safety and efficiency for the water industry but also showcased the versatile applications of drone technology in complex industrial environments.
